1784-PKTXD 1784PKTXD AB AB PCI Bus Card
⇒ Click here for good price 1784-PKTXD
| Brand/Manufacturer | AB/USA |
| Part Number | 1784-PKTXD |
| Alternate Part Number | 1784-PKTXD |
| Description | MOTOR SERVO |
| Dimennsions | 2.1x18x12.6cm |
| Weight | 0.16 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

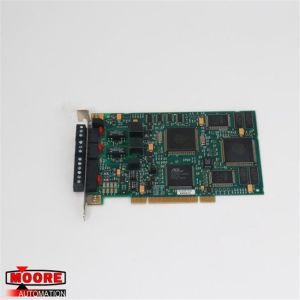

The 1784-PKTXD Card is an AB Network Interface Card. The 1784-PKTXD
Network Interface Card is used for connecting PCs to PLC
controllers through the Data Highway Plus (DH+) or the SLC
processors, and on the DH485 networks. This allows the unit to
achieve an easier and more efficient data acquisition process which
is critical for industrial applications. The 1784-PKTXD Card comes
with the I/O scanner functionality that is also available in
different cards and is used with the soft-control or the embedded
control engines. The 1784-PKTXD Card incorporates the Universal PCI
card as a standard feature. Therefore, the card is compatible with
different operating systems. The 1784-PKTXD Card can be used in
environments where there is a need for general programming,
configuration, and monitoring capabilities through an industrial
device or through a computer desktop.
The 1784-PKTXD Card is ideal for use as a network interface card.
Therefore, since it is a peripheral component interconnect
universal card, it must be inserted into the PCI bus slot. If the
operators are using a universal card, it must be placed in a PCI
bus slot keyed for either the 3.3-Volt or for the 5-Volt signaling.
The 1784-PKTXD Card communicates with the nodes that are placed on
the Data Highway Plus network. This includes the PLC-5, the
PLC-5/250, and the SLC 5/04 processors. The component performs data
transmission, management, and the local network diagnostics. The
1784-PKTXD Card and the host PC exchange the data through a
dual-port interface. This dual-port interface requires up to 4 KB
of memory that begins at the base memory address that is addressed
to the card by the PCI BIOS whenever the PC is started.
